high-speed sierra wireless airprime 4G LTE HSPA+ module MC7710 with Qualcomm MDM7710 chipset
It is end of life, can be replaced by MC7304
AirPrime MC7710 modules allow manufacturers to take advantage of the latest generation of high-speed mobile networks, delivering up to 100Mbps download speeds and 50Mbps upload speeds and integrated GPS capabilities as well as support for both Linux and Windows.
Features:
Sierra Wireless's MC7710 is a 4G Module. It's size is 30x51x4.5 mm. This module supports EDGE,HSDPA,HSPA+,LTE,DC-HSPA,GSM,GPRS technologies. MC7710 certifications are GCF, CE, NCC .
The integration support for this module can be found support. The frequency bands are listed above.Developer support can be found developer support. Specfication can be found specs. Carrier approvals for this module are listed above. For carrier certifcations and MC7710 pricing, please check
Sierra Wireless website.
Specifications:
| Model No | MC7710 |
| Category | 4G Module |
| Manufacturer | Sierra Wireless |
| Chipset | Qualcomm MDM7710 |
| Form Factor | PCIe |
| Dimensions | 51 x 30 x 4.5 mm |
| Technologies | EDGE,HSDPA,HSPA+,LTE,DC HSPA,GSM,GPRS |
| Max Download Speed | 100 Mbps |
| Max Upload Speed | 50 Mbps |
| Frequency bands | |
| GPRS/EDGE | 900/1800/1900 MHz |
| WCDMA | 2100/900 MHz |
| LTE | 2100/900/900 MHz |
| Temperature | -25 º C to 60 º C |
| Certifications | GCF, CE, NCC |
| Carriers Approved | T-Mobile (EU) |
| Interfaces | USB |
| Voice Support | None |
| GPS Support | Yes |
Feature
-Peak downlink speeds up to 100 Mbps and peak uplink speeds up to 50Mbps
-Multi-mode capability ensures continuous connectivity and supports roaming
-Standard form factor simplifies engineering and reduces cost for worldwide product lines
-Supports Gobi API
-Comprehensive SDK and enabling software for Linux and Windows
-Supports Multiple input/multiple output (MIMO) for use with LTE
-Solid documentation, tool development and consultation services
-Solid support for device integration and verification
Key benefits
-High-performing, reliable modules
-Best-in-class technical and integration support
-Easy integration
-Premium functionality and performance
-Compact size and light weight
-Antenna diversity for improved fringe performance
Key Specifications
Air Interface LTE
HSPA+
EDGE
GPRS
GSM
Peak Download Rate 100 Mbps
Peak Upload Rate 50 Mbps
Frequency Bands LTE 800/900/1800/2100/2600 MHz
WCDMA 900/2100 MHz
EDGE/GPRS/GSM 900/1800/1900
Regulatory Approvals CE, GCF-CC, NCC (planned)
Carrier Approvals T-Mobile (EU) (planned)
USB USB 2.0 High Speed
GPIO 6
Flash LED Output 1
SIM Interface 1.8v or 3V
Antenna Diversity Yes
MIMO Yes
GPS Bias Yes
Location Solution gpsOne
Control Options AT commands
Management Services No
Host OS Compatibility Android
Linux
Device Dimensions: 51 x 30 x 4.5mm
Temperature Range: -25°C to +60°C
Application :
Ideal for mobile computing and networking applications, the Sierra Wireless AirPrime MC7710 embedded wireless module easily integrate into a variety of devices such as netbooks, notebooks and tablet computers and offer a high-speed wireless connection over LTE and HSPA+ networks.

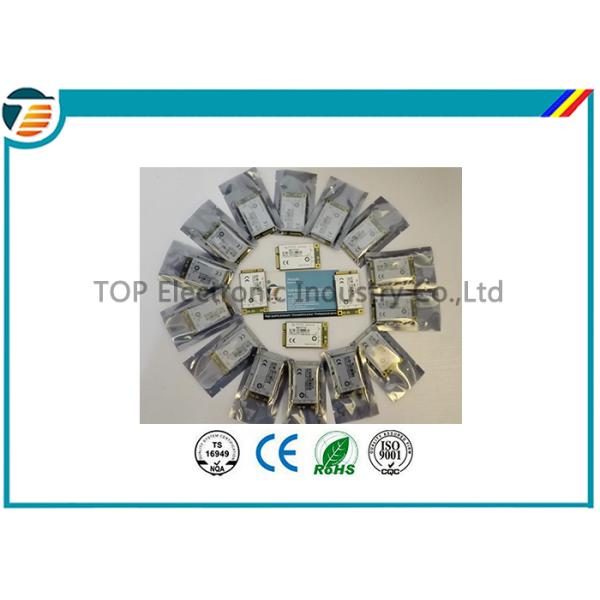

Module display:
